Avigilon Fixed Dome Cameras
Avigilon fixed dome cameras provide a low-profile form factor for commercial video security where a fixed field of view, protected housing and clean installation are important. ACG Security Solutions helps organizations evaluate current Avigilon dome camera options around the scene, lighting, mounting location, analytics requirements and the video-management platform already in use.
Current Avigilon product information includes the H6A Dome for Unity and Alta environments and the H6X Dome for Unity deployments. The right model depends on more than appearance: audio requirements, analytics, image resolution, mounting, environmental exposure and platform compatibility all matter.
Where fixed dome cameras fit
Fixed dome cameras can be useful in commercial interiors and exterior locations where the camera needs to maintain a defined view without operator-controlled movement.
Common applications can include:
- Building entrances and reception areas
- Office corridors and shared spaces
- Retail or customer-facing environments
- Loading-area approaches
- Parking and exterior building views
- Campuses and multi-building properties
- Locations where a compact form factor fits the architecture better than a larger directional housing
A fixed dome should not be selected simply because it is discreet. Camera height, field of view, lighting, expected subject distance and the purpose of the recorded video still determine whether it is the appropriate form factor.

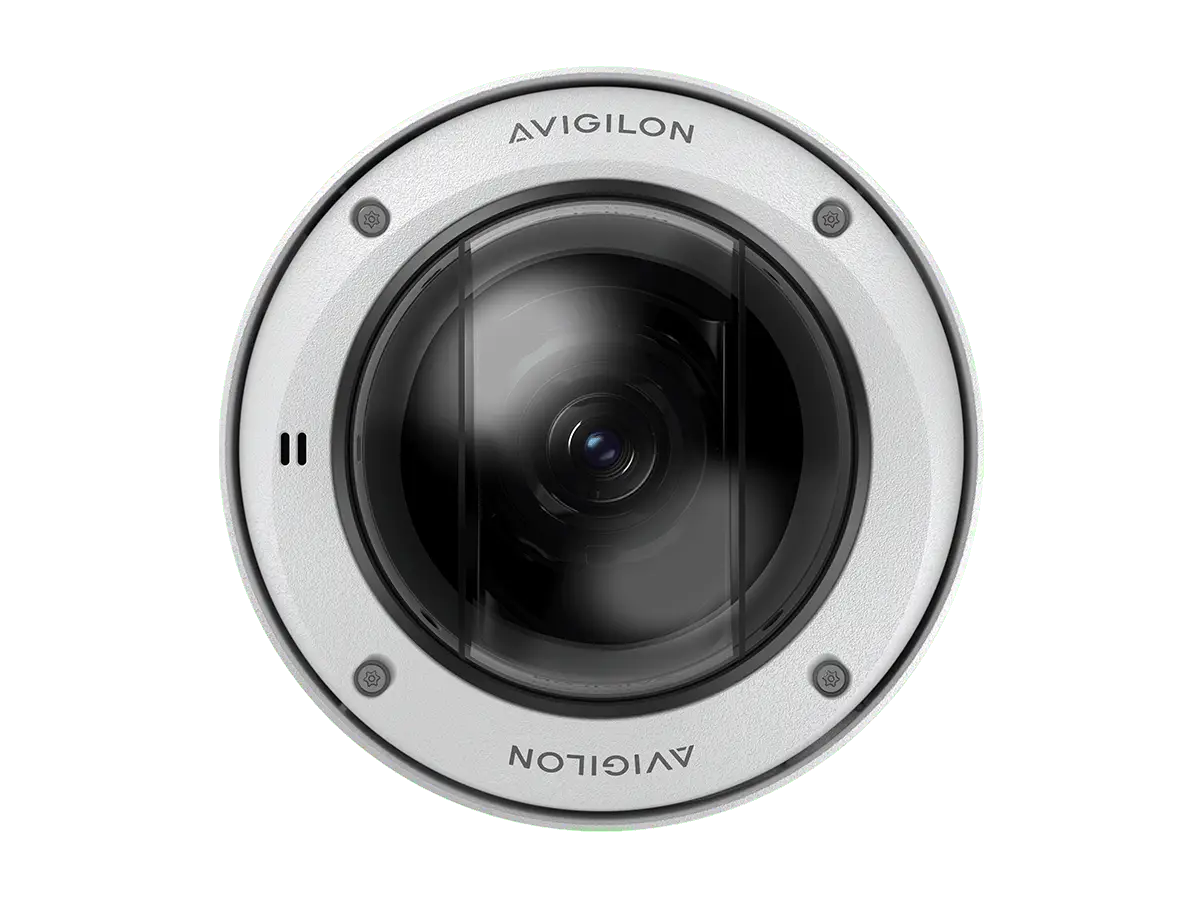

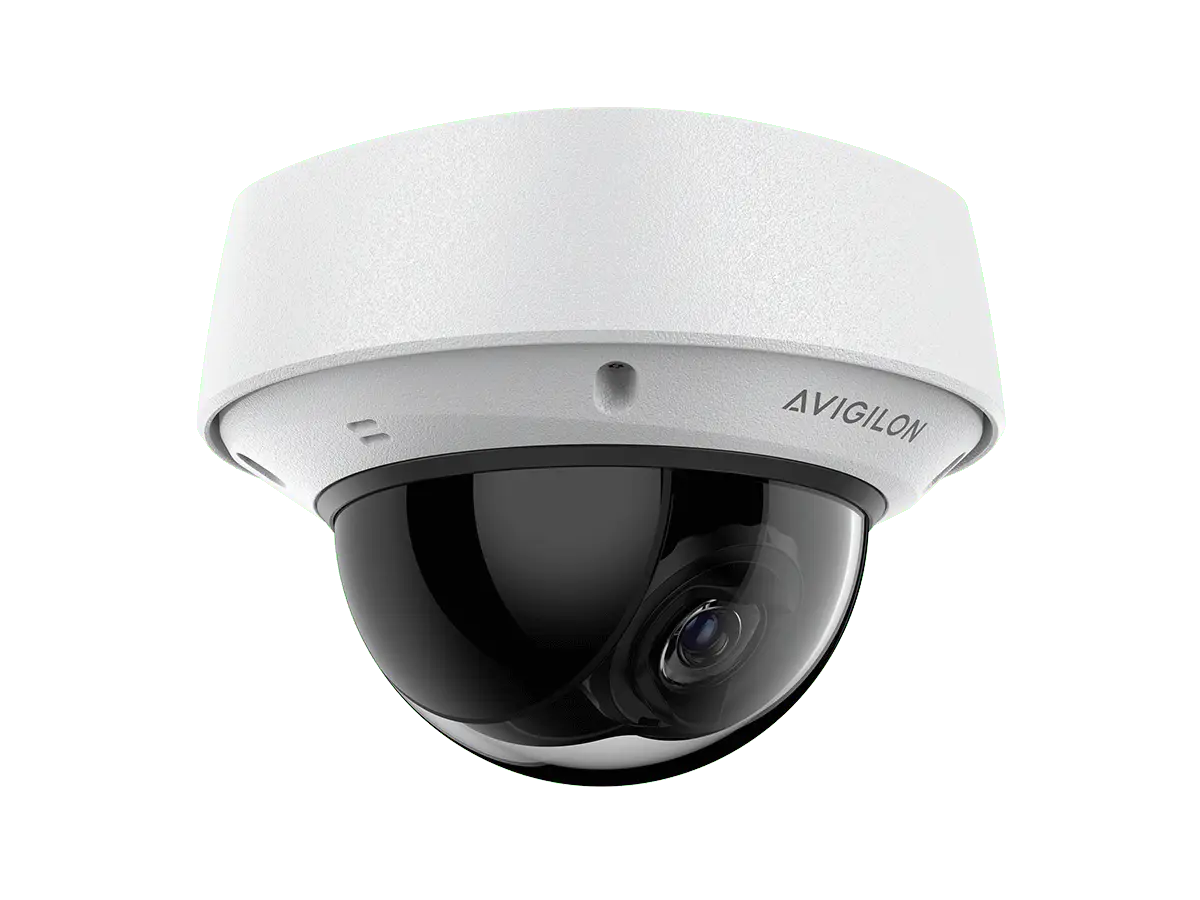

Avigilon H6A Dome
The current Avigilon H6A Dome supports both Avigilon Unity Video and Avigilon Alta Video configurations. Avigilon lists resolution options up to 8 MP, built-in infrared illumination and integrated video and audio analytics on the H6A Dome platform.
The H6A Dome can be considered where the project benefits from a current Avigilon dome platform with analytics and low-light support. Available capabilities vary by selected version and deployment architecture, so ACG confirms the exact model before specifying features.
H6A Dome planning considerations
- Unity or Alta deployment
- Resolution and lens requirements
- Built-in IR and scene lighting
- Whether audio analytics are appropriate for the location
- Mounting method and environmental exposure
- Required video analytics and search workflows

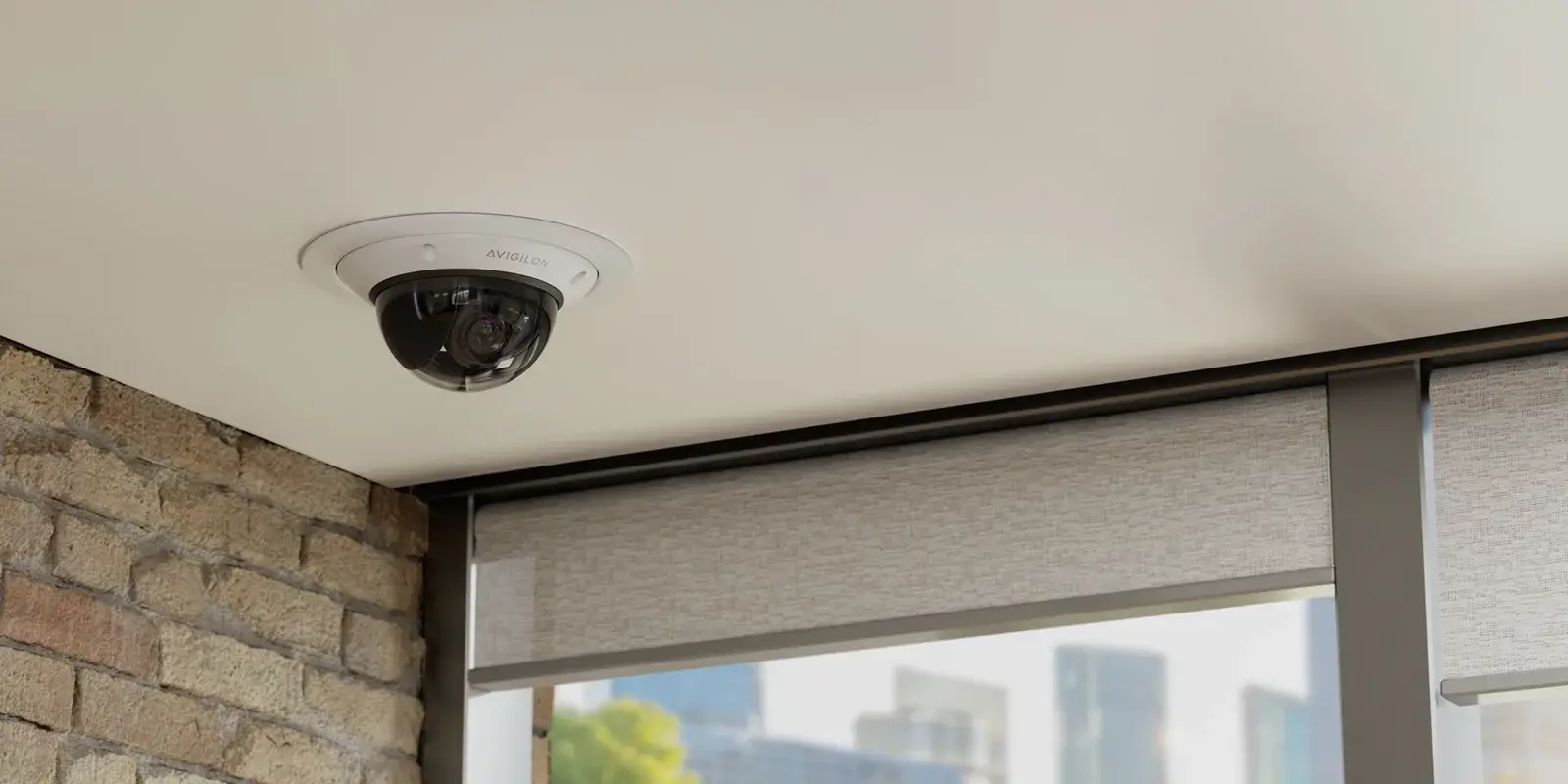

Avigilon H6X Dome
The Avigilon H6X Dome is positioned for Unity on-premise deployments and is designed without a built-in microphone. That distinction can matter in environments where the project requires a dome camera while avoiding an integrated microphone in the camera itself.
The H6X should be evaluated as its own model rather than treated as an H6A with a different name. ACG confirms current resolution, lens, analytics, environmental and mounting options against the selected product documentation before final specification.
H6X Dome planning considerations
- Unity Video deployment
- Privacy and audio requirements
- Scene coverage and lens selection
- Mounting and environmental conditions
- Analytics required by the project
- Integration with the broader Unity environment
Choosing the camera around the scene
A camera category is only the starting point. The useful question is what the camera needs to show.
ACG evaluates:
- Subject distance
- Lighting
- Mounting
- Analytics
- Environment
- Network and recording requirements
Unity and Alta compatibility matters
The current H6A Dome can be used in supported Unity and Alta environments, while the H6X Dome is positioned for Unity on-premise use. That platform distinction should be resolved before the camera is ordered, because the video-management architecture affects onboarding, configuration and ongoing administration.
For platform planning, review Avigilon Video Management, or see the existing Avigilon Video Cameras hub.
For the broader non-brand-specific service, see ACG’s commercial video surveillance systems.
Fixed dome vs. other Avigilon camera categories
| Camera category | Primary planning advantage | Typical reason to evaluate it |
|---|---|---|
| Fixed dome | Compact fixed-view housing | Entrances, interiors and fixed commercial views |
| Bullet | Directional visible camera form | Exterior approaches, perimeters and longer directional views |
| PTZ | Operator-controllable movement and zoom | Wide areas that benefit from active operator control |
| Thermal | Heat-based imaging | Perimeters and visually challenging conditions |
| Multi-sensor / panoramic | Multiple views from one installation point | Wide-area scene coverage |
Video analytics and search
Current Avigilon camera families can support different analytics capabilities depending on model and platform. Analytics should be selected around a specific operational question rather than treated as a generic feature checklist.
For broader planning around software-based video review, see ACG’s commercial video analytics.
ACG confirms current camera and software compatibility before relying on an analytics capability in the final design.
Installation and infrastructure considerations
Before installation, ACG reviews:
- Mounting surface and available accessories
- Cable pathway and network connectivity
- Power and PoE requirements for the selected model
- Service access
- Existing camera infrastructure
- Environmental exposure
- Recording and storage architecture

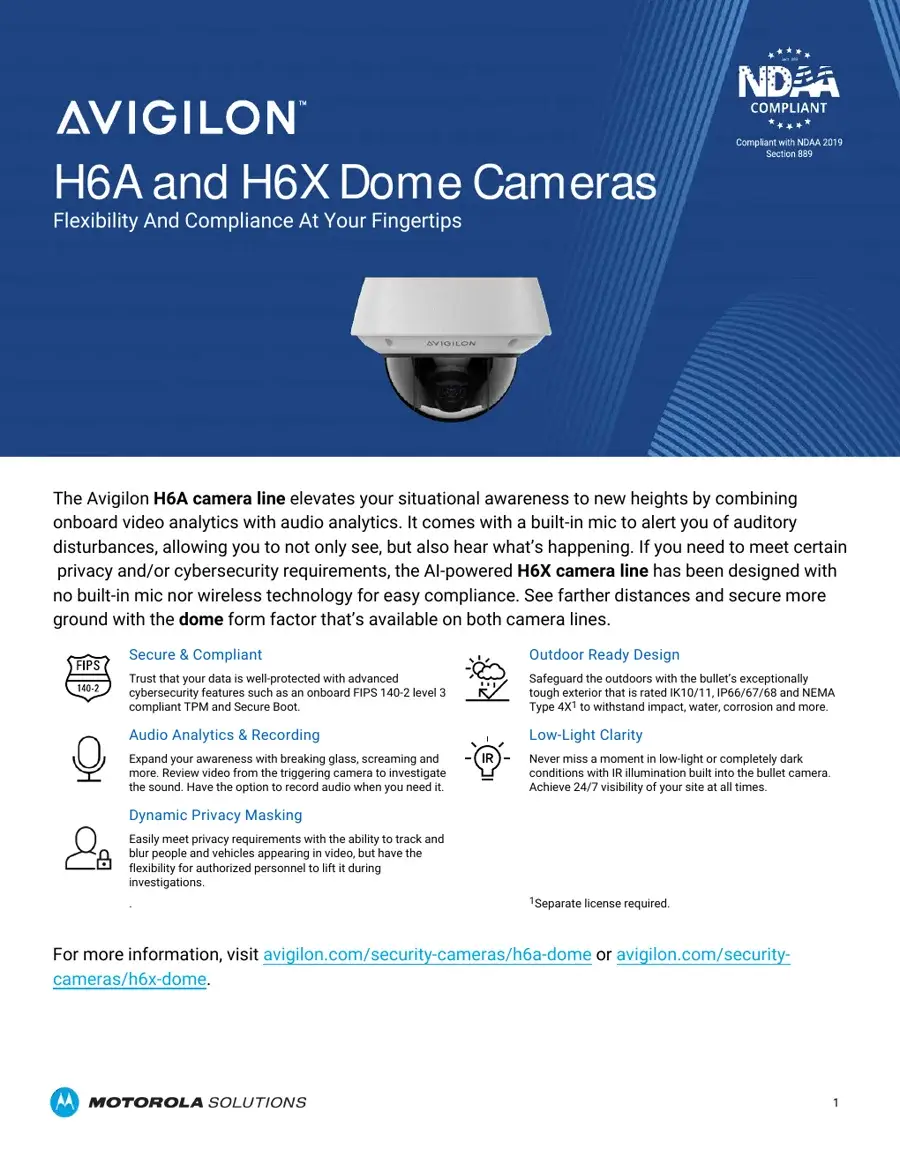

Current product documentation
Use the current Avigilon H6A/H6X documentation for model-specific resolution, environmental, mounting, network and analytics details.
Plan the camera around what you need to see
ACG Security Solutions can review the scene, camera height, lighting, network, platform and investigation requirements, then help determine which Avigilon fixed dome option fits the application.
